Data Operations

This section provides information to operate data stored in LeoFS as well as the prior knowledge that gives you the better understanding about what will happen behind the scene when you invoke a command for a data operation.

Storage Architecture

A brief introduction how LeoFS organize data into actual OS files.

Append-Only for Content

Once a PUT/DELETE remote procedure call (RPC) arrives on LeoStorage appends new blocks including the object information such as the key, data itself and also various associated metadata to the end of a file.

This Append-Only-File we call AVS, Aria Vector Storage which is referenced when retrieving the data through GET RPCs. With its inherent nature of the Append-Only-File, a data-compaction process is needed to clean up the orphaned space in an AVS.

Embedded KVS for Metadata

After having succeeded in appending new blocks to an AVS, then leo_object_storage updates a corresponding KVS file with the key and its associated metadata (same information stored in the AVS except for the data itself) and its offset where the new blocks stored in AVS as a value. This KVS file is referenced when retrieving the data/metadata through GET/HEAD RPCs.

Message Queue for Async Operations

Some data can be stored into a Queue for processing later in the case

  • A PUT/DELETE operation failed
  • A Multi DC Replication (MDCR) failed
  • rebalance/recover-(file|node|cluster) invoked through leofs-adm

File Structure

Multiple AVS/KVS pairs can be placed on one node to enable LeoFS handling as much use cases and hardware requirements as possible. See Concept and Architecture / LeoStorage's Architecture - Data Structure.

  • Container : AVS/KVS pair = 1 : N
    • Multiple AVS/KVS pairs can be stored under one OS directory (We call it Container).
    • 'N' can be specified through leo_storage.conf.
    • How to choose optimal 'N'
      • As a data-compaction is executed per AVS/KVS pair, at least the size of a AVS/KVS pair is needed to run data-compaction so that the larger 'N', the less disk space LeoFS uses for data-compaction.
      • However the larger N, the more disk seeks LeoFS suffers.
      • Tha said, the optimal N is determined by setting the largest value that doesn't affect the online throughput you would expect.
  • Node : Container = 1 : N
    • Each Container can be stored under a different OS directory.
    • N can be specified through leo_storage.conf.
    • Setting N > 1 can be useful when there are multiple JBOD disks on the node. The one JBOD disk array can be map to the one container.

Data Compaction

This section provides information about what/how data-compaction can affect the online performance.

  • Parallelism
    • A data-compaction can be executed across multiple AVS/KVS pairs in parallel.
    • The number of data-compaction processes can be specified through an argument of leofs-adm.
    • Increasing the number can be useful when the load coming from online is relatively low and want a data-compaction process to boost as much as possible.
    • Be careful that too much number can make a data-compaction process slow down.
  • Concurrent with any operation coming from online.
    • GET/HEAD never be blocked by a data-compaction.
    • PUT/DELETE can be blocked while a data-compaction is processing the tail part of an AVS.
    • Given that the above limitation, We would recommend suspending a node you are supposed to run a data-compaction if a LeoFS system's cluster handles write intensive workload.

How To Operate Data Compaction

As described in the previous section, A compaction process is needed to remove logically deleted objects and its corresponding metadata.

State Transition

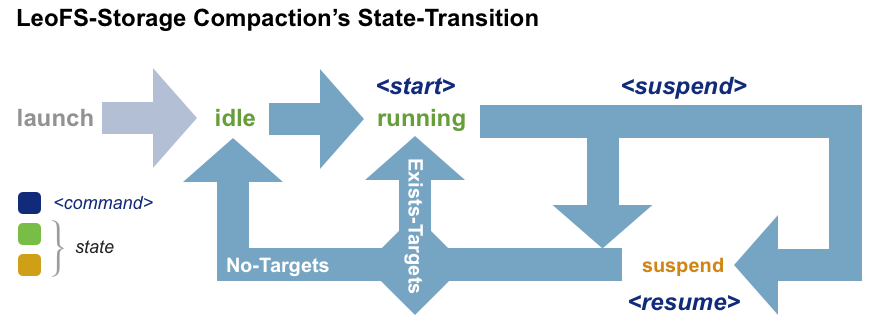

State Transition

Commands

Commands related to Compaction as well as Disk Usage.

Shell Description
Compaction Commands
leofs-adm compact-start <storage-node> (all/<num-of-targets>) [<num-of-compaction-proc>] Start Compaction (Transfer its state to running).

num-of-targets: How many AVS/KVS pairs are compacted.
num-of-compaction-pro: How many processes are run in parallel.
leofs-adm compact-suspend <storage-node> Suspend Compaction (Transfer its state to 'suspend' from running).
leofs-adm compact-resume <storage-node> Resume Compaction (Transfer its state to 'running' from suspend).
leofs-adm compact-status <storage-node> See the Current Compaction Status.
leofs-adm diagnose-start <storage-node> Start Diagnose (Not actually doing Compaction but scanning all AVS/KVS pairs and reporting what objects/metadatas exist as a file).
Disk Usage
leofs-adm du <storage-node> See the Current Disk Usage.
leofs-adm du detail <storage-node> See the Current Disk Usage in detail.

compact-start

1
2
3
4
5
6
7
8
9
## Example:
## All AVS/KVS pairs on storage_0@127.0.0.1 will be compacted with 3 concurrent processes
## (default concurrency is 3)
$ leofs-adm compact-start storage_0@127.0.0.1 all
OK

## 5 AVS/KVS pairs on storage_0@127.0.0.1 will be compacted with 2 concurrent processes
$ leofs-adm compact-start storage_0@127.0.0.1 5 2
OK

compact-suspend

1
2
3
## Example:
$ leofs-adm compact-suspend storage_0@127.0.0.1
OK

compact-resume

1
2
3
## Example:
$ leofs-adm compact-resume storage_0@127.0.0.1
OK

compact-status

1
2
3
4
5
6
7
8
## Example:
$ leofs-adm compact-status storage_0@127.0.0.1
        current status: running
 last compaction start: 2013-03-04 12:39:47 +0900
         total targets: 64
  # of pending targets: 5
  # of ongoing targets: 3
  # of out of targets : 56

diagnose-start

See also diagnosis-log format to understand the output log format.

1
2
3
## Example:
$ leofs-adm diagnose-start storage_0@127.0.0.1
OK

du

1
2
3
4
5
6
7
8
9
## Example:
$ leofs-adm du storage_0@127.0.0.1
 active number of objects: 19968
  total number of objects: 39936
   active size of objects: 198256974.0
    total size of objects: 254725020.0
     ratio of active size: 77.83%
    last compaction start: 2013-03-04 12:39:47 +0900
      last compaction end: 2013-03-04 12:39:55 +0900

du detail

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
## Example:
$ leofs-adm du detail storage_0@127.0.0.1
[du(storage stats)]
                file path: /home/leofs/dev/leofs/package/leofs/storage/avs/object/0.avs
 active number of objects: 320
  total number of objects: 640
   active size of objects: 3206378.0
    total size of objects: 4082036.0
     ratio of active size: 78.55%
    last compaction start: 2013-03-04 12:39:47 +0900
      last compaction end: 2013-03-04 12:39:55 +0900
.
.
.
                file path: /home/leofs/dev/leofs/package/leofs/storage/avs/object/63.avs
 active number of objects: 293
  total number of objects: 586
   active size of objects: 2968909.0
    total size of objects: 3737690.0
     ratio of active size: 79.43%
    last compaction start: ____-__-__ __:__:__
      last compaction end: ____-__-__ __:__:__

Diagnosis

This section explains the file format generated by leofs-adm diagnose-start in detail.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
## Example:
------+------------------------------------------+------------------------------------------------------------+-----------+------------+------------------+--------------------------+----
Offset| RING's address-id                        | Filename                                                   | Child num | File Size  | Unixtime         | Localtime                |del?
------+------------------------------------------+------------------------------------------------------------+-----------+------------+------------------+--------------------------+----
194     296754181484029444656944009564610621293   photo/leo_redundant_manager/Makefile                             0       2034        1413348050768344   2014-10-15 13:40:50 +0900   0
2400    185993533055981727582172380494809056426   photo/leo_redundant_manager/ebin/leo_redundant_manager.beam      0       24396       1413348050869454   2014-10-15 13:40:50 +0900   0
38446   53208912738248114804281793572563205919    photo/leo_rpc/.git/refs/remotes/origin/HEAD                      0       33          1413348057441546   2014-10-15 13:40:57 +0900   0
38658   57520977797167422772945547576980778561    photo/leo_rpc/ebin/leo_rpc_client_utils.beam                     0       2576        1413348057512261   2014-10-15 13:40:57 +0900   0
69506   187294034498591995039607573685274229706   photo/leo_backend_db/src/leo_backend_db_server.erl               0       13911       1413348068031188   2014-10-15 13:41:08 +0900   0
83603   316467020376888598364250682951088839795   photo/leo_backend_db/test/leo_backend_db_api_prop.erl            0       3507        1413348068052219   2014-10-15 13:41:08 +0900   1

The file is formatted as Tab Separated Values (TSV) except headers (head three lines of a file). The detail of each column are described below:

Column Number Description
1 byte-wise Offset where the object is located in an AVS.
2 Address ID on RING (Distribute Hash Routing Table).
3 File Name.
4 The Number of Children in a File.
5 File Size in bytes.
6 Timestamp in Unix Time.
7 Timestamp in Local Time.
8 Flag (0/1) representing whether the object is removed.

Recover Objects

This section provides information about the recovery commands that can be used in order to recover inconsistencies in a LeoFS cluster according to failures.

Commands

Shell Description
leofs-adm recover-file \<file-path> Recover an inconsistent object specified by the file-path.
leofs-adm recover-node \<storage-node> Recover all inconsistent objects in the specified storage-node.
leofs-adm recover-cluster \<cluster-id> Recover all inconsistent objects in the specified cluster-id.

recover-file

1
2
3
## Example:
$ leofs-adm recover-file leo/fast/storage.key
OK

recover-node

1
2
3
## Example:
$ leofs-adm recover-node storage_0@127.0.0.1
OK
  • recover-cluster
1
2
3
## Example:
$ leofs-adm recover-cluster cluster-1
OK

Use Cases

When/How to use recover commands.

  • AVS/KVS Broken
    • Invoke recover-node with a node having broken AVS/KVS files.
  • Queue Broken
    • Invoke recover-node with every node except which having broken Queue files.
    • The procedure might be improved in future when issue#618 solved.
  • Disk Broken
    • Invoke suspend with a node having broken Disk arrays and subsequently run leo_storage stop.
    • Exchange broken Disk arrays.
    • Run leo_storage start and subsequently Invoke resume with the node.
    • Invoke recover-node with the node.
  • Node Broken
    • Invoke detach with a broken node.
    • Prepare a new node that will take over all objects assigned to a detached node.
    • Invoke rebalance.
  • Source/Destination Cluster Down
    • Invoke recover-cluster with a downed cluster.
  • Source/Destination Cluster Down and delete operations on the other side got lost (compacted).
    • Set up the cluster from scratch
    • invoke recover-cluster with the new cluster
    • See also issue#636 for more information.
